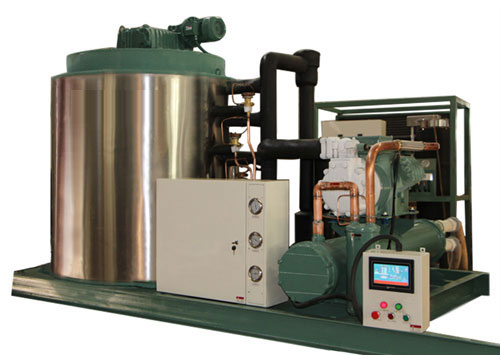

 Sea water flake ice machine on fishing boat 5ton/day

UKSF-5Ton

Specifications

Sea water flake ice machine:
1, Bitzer compressor
2, 316L stainless steel evaporator,corrosion-resist
3, CE approval

Application fields

 Sea water flake ice machine are widely used in the ocean fish, sea food preservation, sea water making ice directly

 The more and more user give up the traditional ice cream brick cooling way, but choose the more convenient and quick,more economic sea water flake ice machine.

Design/Technology/Material

URUKsea water flake ice machine, manufactured with 316L stainless steel, corrosion-resistant material.special treatment surface, installed directly on the ship, the vibrating angel up reach to 35°C. Using sea water tomake flake ice, and the ice fall down to the cabin directly. Due to the machine works continuously, the load of vessels can be reduced dramatically, also, fuel costs can be largly saved.







Parameters

No.

Description

Specification

1

Daily Output

5000kg/24h

2

Refrigerants

R404A/R717

3

Power supply(Customized):

380V-3P-50HZ

4

Cooling type

water cooling

5

Compressor

Bitzer Piston compressor

6

Ice outlet diameter

Φ790mm

7

Eavaporator dimension

1800x1450x1650mm

8

Water resource

Sea water

9

Refrigerants system

Fluorine system/Ammonia system

10

Thickness of ice flake

1.5~2.2mm

11

Applicable Working condition

ambient temp: 0~55°C, water temp: -2~45°C

12

Standard working condition

ambient temp:25°C, water temp: 18°C, evaporating temp: -20°C



Models available:

Model

Capacity

Compressor Power

Reducer power

Circulating Pump power

Seawater circulating pump power

Refrigerant

UKSF-07

700kg/24h

5HP

0.18KW

0.09KW

0.37KW

R717/R404/R507/R22

UKSF-1

1000kg/24h

6HP

0.18KW

0.09KW

0.37KW

R717/R404/R507/R22

UKSF-2

2000kg/h

12HP

0.37KW

0.09KW

0.55KW

R717/R404/R507/R22

UKSF-3

3000kg/h

20HOP

0.37KW

0.09KW

0.55KW

R717/R404/R507/R22

UKSF-4

4000kg/h

30HP

0.37KW

0.12KW

0.75KW

R717/R404/R507/R22

UKSF-5

5000kg/h

40HP

0.55KW

0.25KW

0.75KW

R717/R404/R507/R22

UKSF-7.5

7500kg/24h

50HP

0.75KW

0.25KW

1.1KW

R717/R404/R507/R22



Disclaimer:

All photos and specifications Uruk offered are just for customer general reference, and we have right to change or update without notice. Please confirm all information before placing an order.
