Specifications

Pu panel is composite two layers Color steel sheets/Galvanized sheets/Stainless sheets and polyurethane insulation. Used as roof; wall and cold room material.

(1) PU Sandwich panel -40°F~+68°F are all available

(2) .Size: Customized

(3) Functions:fresh-keeping,freezing,quick-freezing,fire-proof,explosion-proof,air-conditioning are all available

(4) .Fully automatic control system

PU Sandwich Panel

1 Advantage of PU sandwich panel

(1)

Easy installation

(2)

High strength

(3)

Fireproof

(4)

Heatproof

(5)

Nice appearance

(6)

Anti-oxidation

2 Raw materials of PU sandwich panel

(1)

Aluminum alloy sheet Al3003 Al3004/Galvanized sheet /Stainless steel sheet

(2)

Hard polyurethane foam

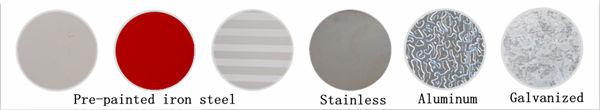

Surface color multiple choices



4 Paint of PU Sandwich panel

(1)

PE

(2)

HDP

(3)

SMP

(4)

PVDF

5 Specification of PU Sandwich panel

Density

38-46kg/

Thickness

40mm-200mm

Rib height

8mm for wall

40mm for roof

Wave span

30mm for wall

320mm for roof

Wave no.

20 for wall

3 for roof

Effective Width

950mm for wall

960mm for roof

Length

Max 11800mm

Usage of PU Sandwich panel

(1)

Roof

(2)

Wall

(3)

Cold room

7 Applications of PU Sandwich panel

Gymnasium, Warehouse, Hospital, Supermarket, Shelter, Commercial and Industrial facilities

8 Features of PU Sandwich panel

1) Light Self-weight

Installation is convenient and flexible without the large-size lifting devices so that the construction period is limited with the lower comprehensive costs.

2) Heavy Load-bearing Capacity:

It features high strength and high rigidness and is suitable either for the weight-bearing structure or for the protective structure.

3) Good Temp-keeping & Heat Insulation:

With hard polystyrene foams, average thermal conductivity 0.023w/m.k.

4) Fine fireproof

Test by National Quality Inspection Center of Fireproof Building Material

5) Flexible Application

As the continuous production line is controlled by the computer system, the length of the compound sheets will be decided and selected according to the designing requirement, transportation and installation conditions. It is possible to select the different thickness of the composite panels in accordance with the loading of the roof and purline distance.













Workshop                                      Delivery



Project sites:
