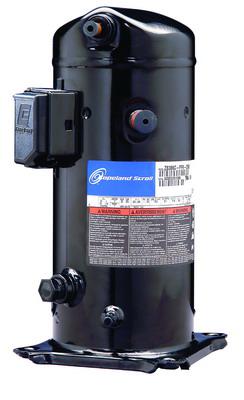

Copeland Scroll compressor ZF Series
ZF24K4
.jpg)
Details
Model: ZF24K4-TFD-551
Horse power: 7.5Hp
Refrigerant: R22
Voltage: 460V
Frequency: 60HZ
Phase: 3
Cooling capacity: 63100Btu/hr
Weight: 81Kgs
Dimension: 375*321*540mm
Style: Copeland scroll compressor
Shipment: within 7days
Payment: T/T or L/C
Specifications：7.5Hp
Model | HP | F Cond | 7.2°C | 1.7°C | -3.9°C | -6.7°C | -9.4°C | -12.2°C | -17.8°C | -23.3°C | -28.9°C | -34.4°C | -40.0°C |
ZF06K4 | 2.0 | 90 | 22900 | 19300 | 16200 | 14700 | 13300 | 12000 | 9750 | 7770 | 6120 | 4760 | 3690 |
110 | 21100 | 17800 | 14900 | 13500 | 12300 | 11100 | 9000 | 7190 | 5680 | 4430 | 3430 | ||
130 | 18900 | 16000 | 13300 | 12100 | 11000 | 9920 | 8060 | 6440 | 5100 | 3990 | 3120 | ||
ZF11K4 | 3.0 | 90 | 29100 | 24600 | 20500 | 18700 | 16900 | 15300 | 12400 | 9920 | 7780 | 6050 | 4690 |
110 | 26800 | 22700 | 18900 | 17300 | 15600 | 14100 | 11400 | 9170 | 7210 | 5630 | 4370 | ||
130 | 26600 | 22000 | 18100 | 16300 | 14800 | 13300 | 11300 | 9080 | 7330 | 5770 | 4450 | ||
ZF13K4 | 4.0 | 90 | 43500 | 37600 | 31800 | 28900 | 26300 | 23700 | 20000 | 16000 | 12700 | 9920 | 7680 |
110 | 41800 | 35300 | 29200 | 26300 | 23700 | 21300 | 18200 | 14600 | 11600 | 9050 | 6990 | ||
130 | 37800 | 31400 | 25800 | 23400 | 21000 | 18900 | 16200 | 12900 | 10300 | 8020 | 6180 | ||
ZF15K4 | 5.0 | 90 | 56300 | 47300 | 39200 | 35600 | 32200 | 28900 | 24400 | 19700 | 15600 | 12300 | 9460 |
110 | 51800 | 43300 | 35700 | 32300 | 29100 | 26300 | 22300 | 17900 | 14300 | 11100 | 8610 | ||
130 | 46300 | 38400 | 31700 | 28700 | 25900 | 23300 | 19800 | 15900 | 12600 | 9880 | 7630 | ||
ZF18K4 | 6.0 | 90 | 69500 | 578900 | 47500 | 42900 | 38700 | 34800 | 29200 | 23300 | 18400 | 14300 | 11100 |
110 | 63200 | 52400 | 43100 | 38900 | 35000 | 31500 | 26400 | 21200 | 16800 | 13100 | 10100 | ||
130 | 56300 | 46700 | 38300 | 34600 | 31100 | 28000 | 23500 | 18800 | 14900 | 11600 | 8910 | ||
ZF24K4 | 7.5 | 90 | 84300 | 69700 | 57100 | 51600 | 46400 | 41800 | 33500 | 26800 | 21300 | 16900 | 13600 |
110 | 76300 | 63100 | 51700 | 46700 | 42100 | 37800 | 30700 | 24800 | 2000 | 16300 | 13500 | ||
130 | 67800 | 56100 | 46000 | 41600 | 37500 | 33600 | 27800 | 22500 | 18400 | 15000 |
|

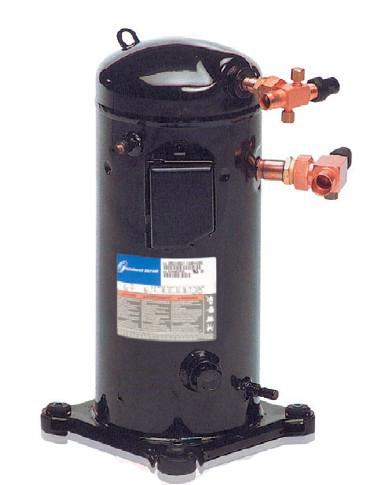

ZF48K4E-TWD-551
.jpg)
Details
Model: ZF48K4E-TWD-551
Horse power: 16Hp
Refrigerant: R404
Voltage: 460V
Frequency: 60HZ
Phase: 3
Cooling capacity: 53500Btu/hr
Weight: 106.8Kgs
Dimension: 375*321*594mm
Style: hermetic scroll ZF series
Shipment: 2days by air
Specifications：16Hp
ZF33K4E-TFD-551
.jpg)
Details
Model: ZF33K4E-TFD-551
Horse power: 11Hp
Refrigerant: R404
Voltage: 460V
Frequency: 60HZ
Phase: 3
Cooling capacity: 38400Btu/hr
Weight: 102Kgs
Dimension: 375*321*540mm
Style: hermetic scroll ZF series
Shipment: 7days
Specifications：11Hp
ZF06K4E-TFD-551
.jpg)
Details
Model: ZF06K4E-TFD-551
Horse power: 2Hp
Refrigerant: R404
Voltage: 460V
Frequency: 60HZ
Phase: 3
Cooling capacity: 10700Btu/hr
Weight: 26Kgs
Dimension: 230*242*383mm
Style: hermetic scroll
Specifications：2Hp
ZF18K4E-TFD-551
.jpg)
Details
Model: ZF18K4E-TFD-551
Horse power: 6Hp
Refrigerant: R404
Voltage: 460V
Frequency: 60HZ
Phase: 3
Cooling capacity: 30000Btu/hr
Weight: 44Kgs
Dimension: 243*244*490mm
Style: hermetic scroll
Specifications：6Hp
ZF15K4E-TFD-551
.jpg)
Details
Model: ZF15K4E-TFD-551
Product name：ZF15K4E-TFD-551
Specifications：5Hp
Horse power: 5Hp
Refrigerant: R404
Voltage: 460V
Frequency: 60HZ
Phase: 3
Cooling capacity: 25000Btu/hr
Weight: 42Kgs
Dimension: 241*244*490mm
Style: hermetic scroll
ZF11K4E-TFD-551
.jpg)
Details
Model: ZF11K4E-TFD-551
Horse power: 4Hp
Refrigerant: R404
Voltage: 460V
Frequency: 60HZ
Phase: 3
Cooling capacity: 17000Btu/hr
Weight: 31Kgs
Dimension: 243*244*490mm
Style: hermetic scroll
Specifications：4Hp
ZF09K4E-TFD-551
.jpg)
Details
Model: ZF09K4E-TFD-551
Product name：ZF09K4E-TFD-551
Specifications：3Hp
Horse power: 3Hp
Refrigerant: R404
Voltage: 460V
Frequency: 60HZ
Phase: 3
Cooling capacity: 12000Btu/hr
Weight: 26Kgs
Dimension: 242*242*383mm
Style: hermetic scroll
